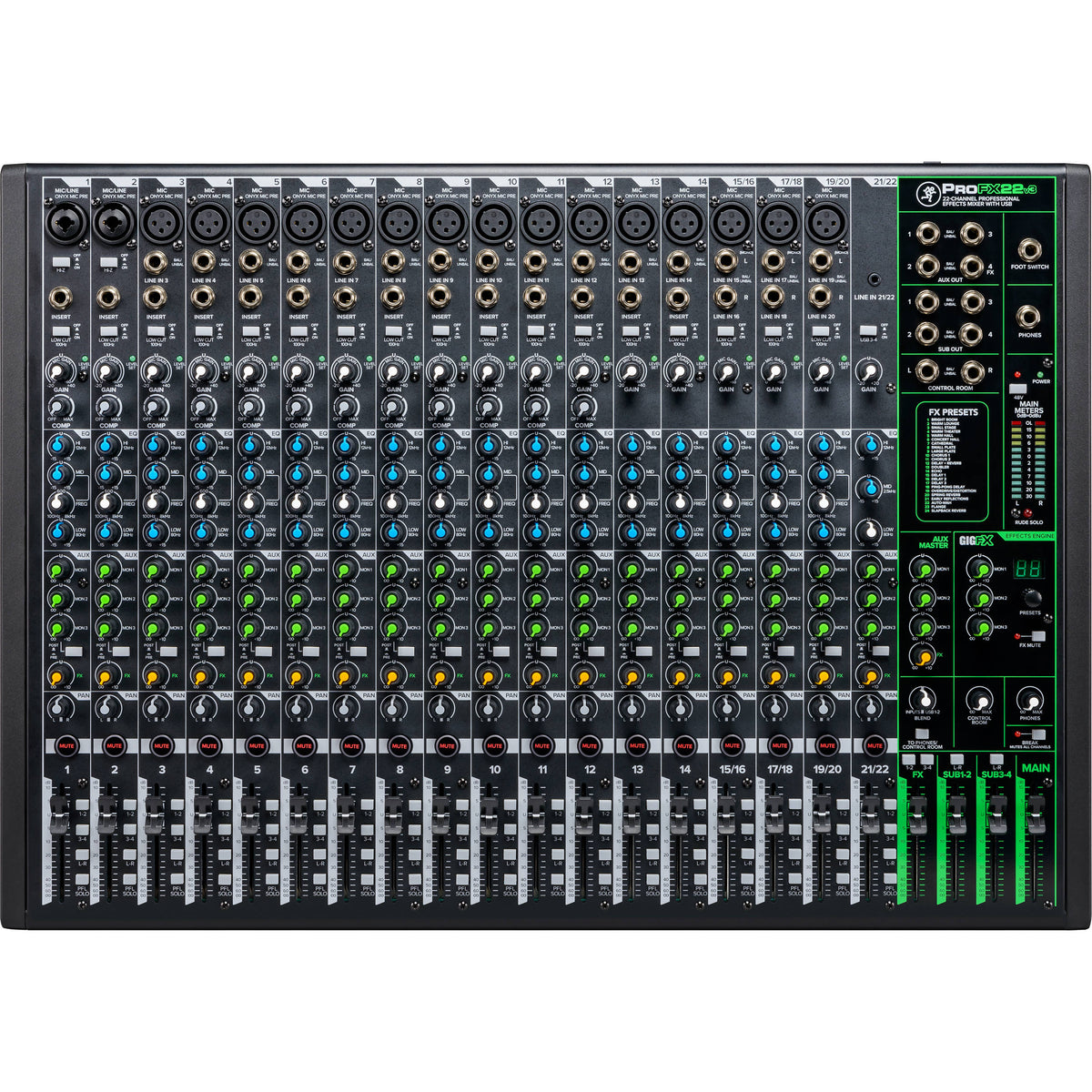

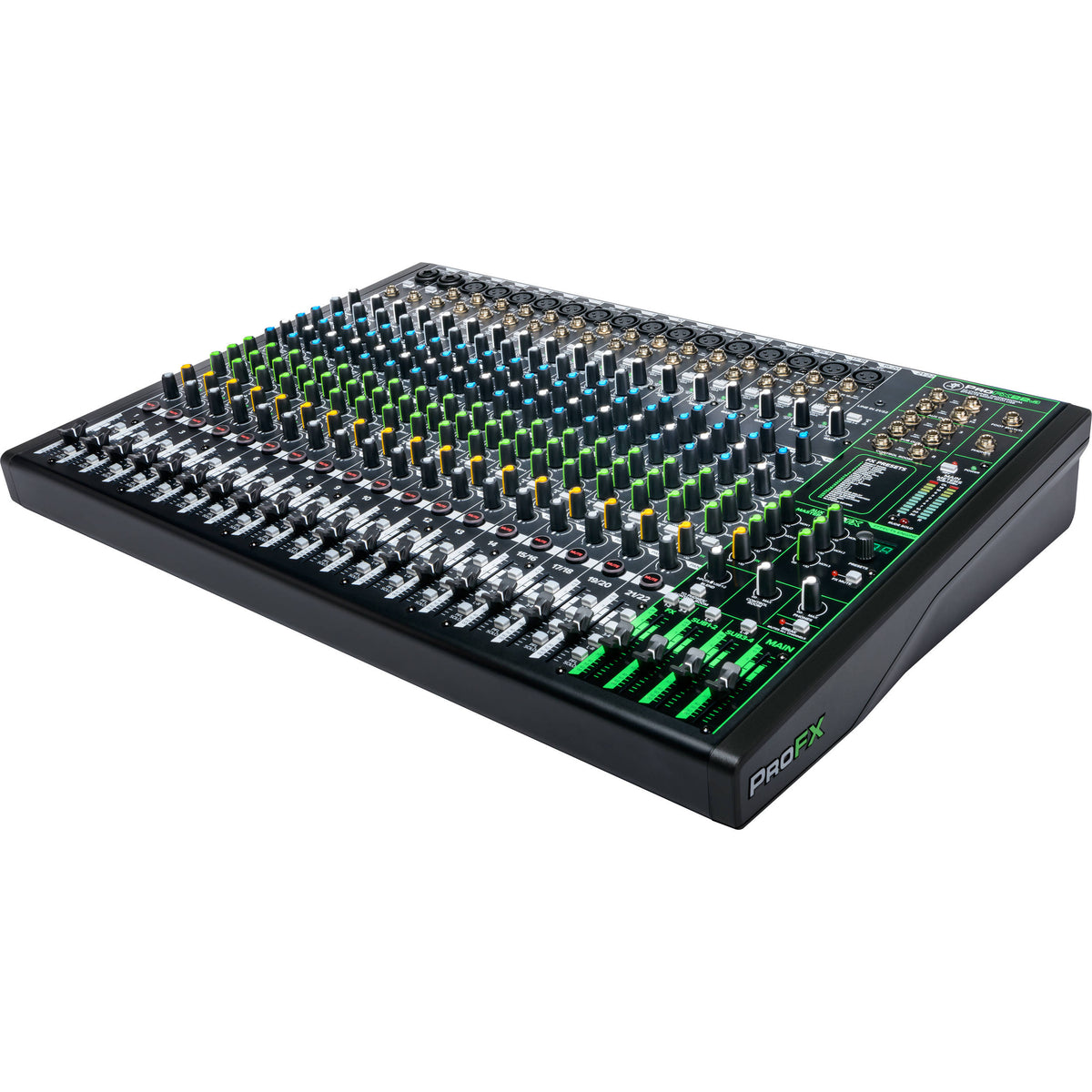

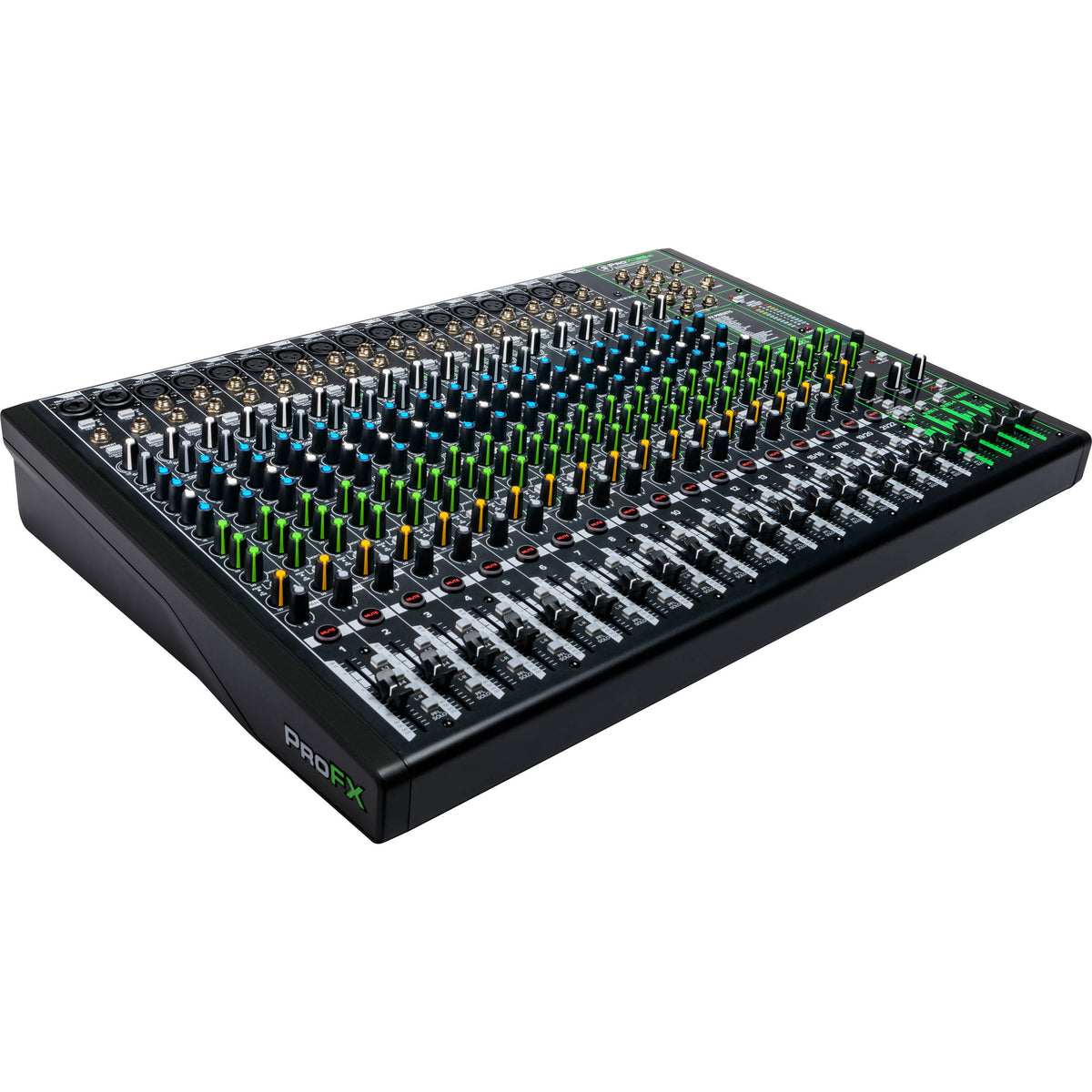

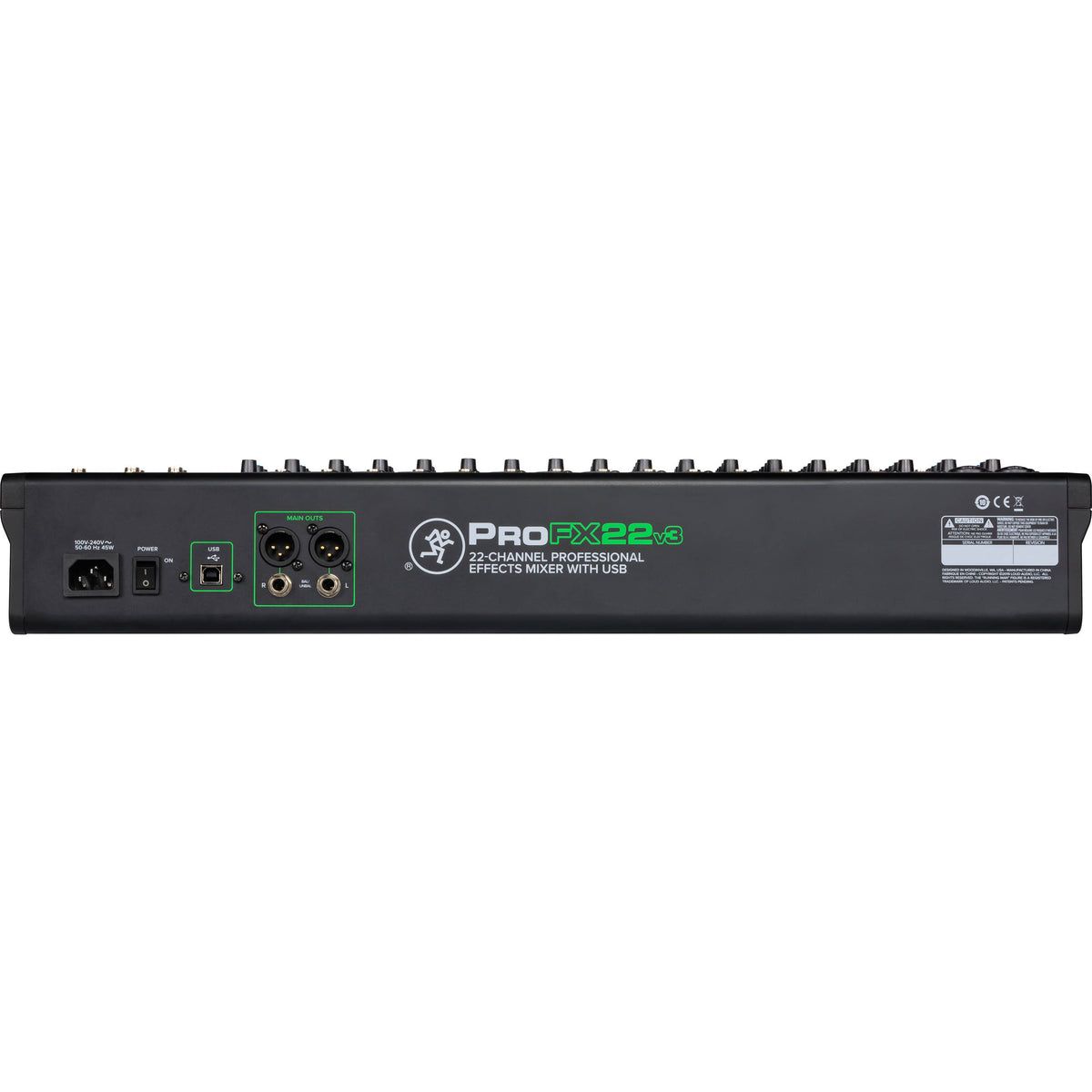

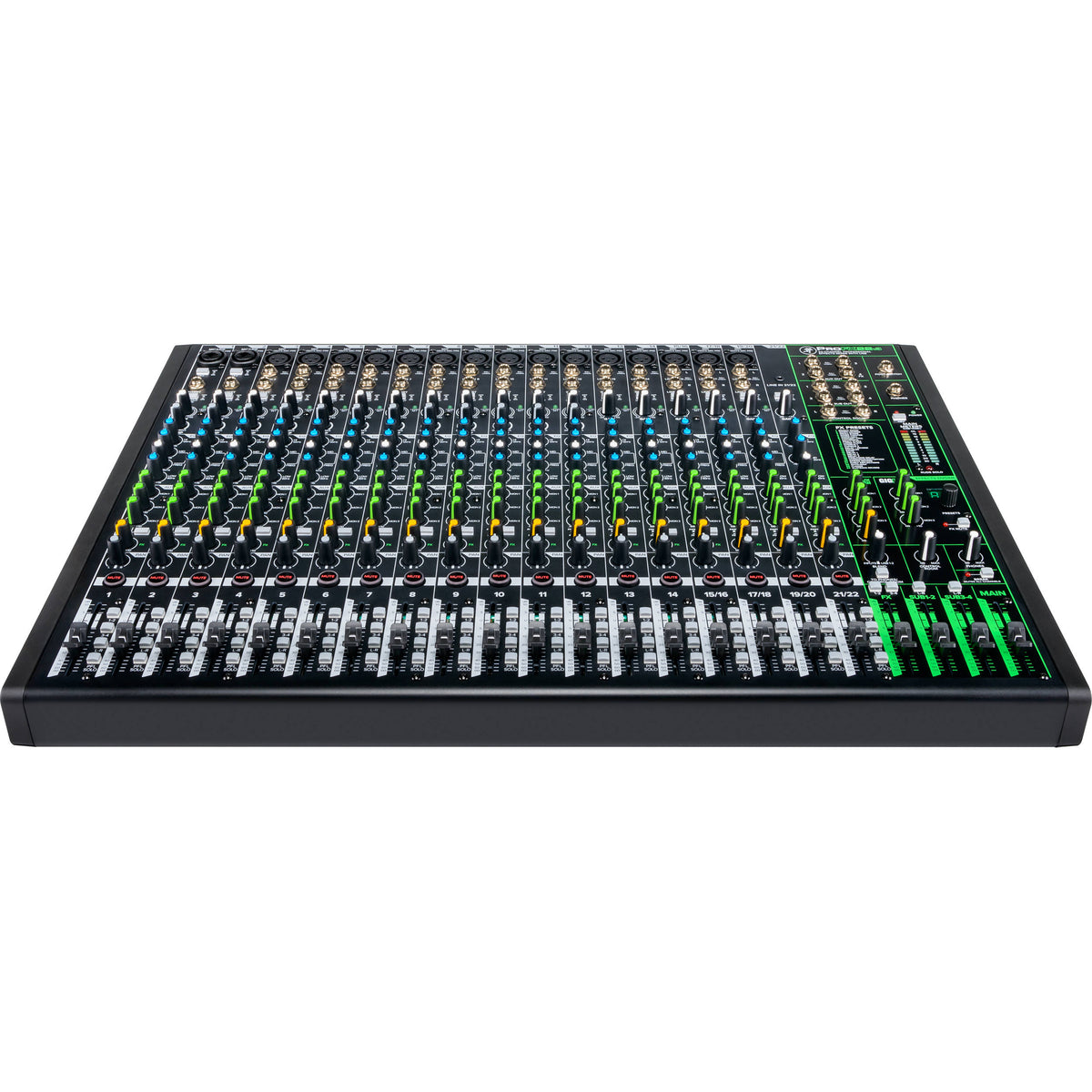

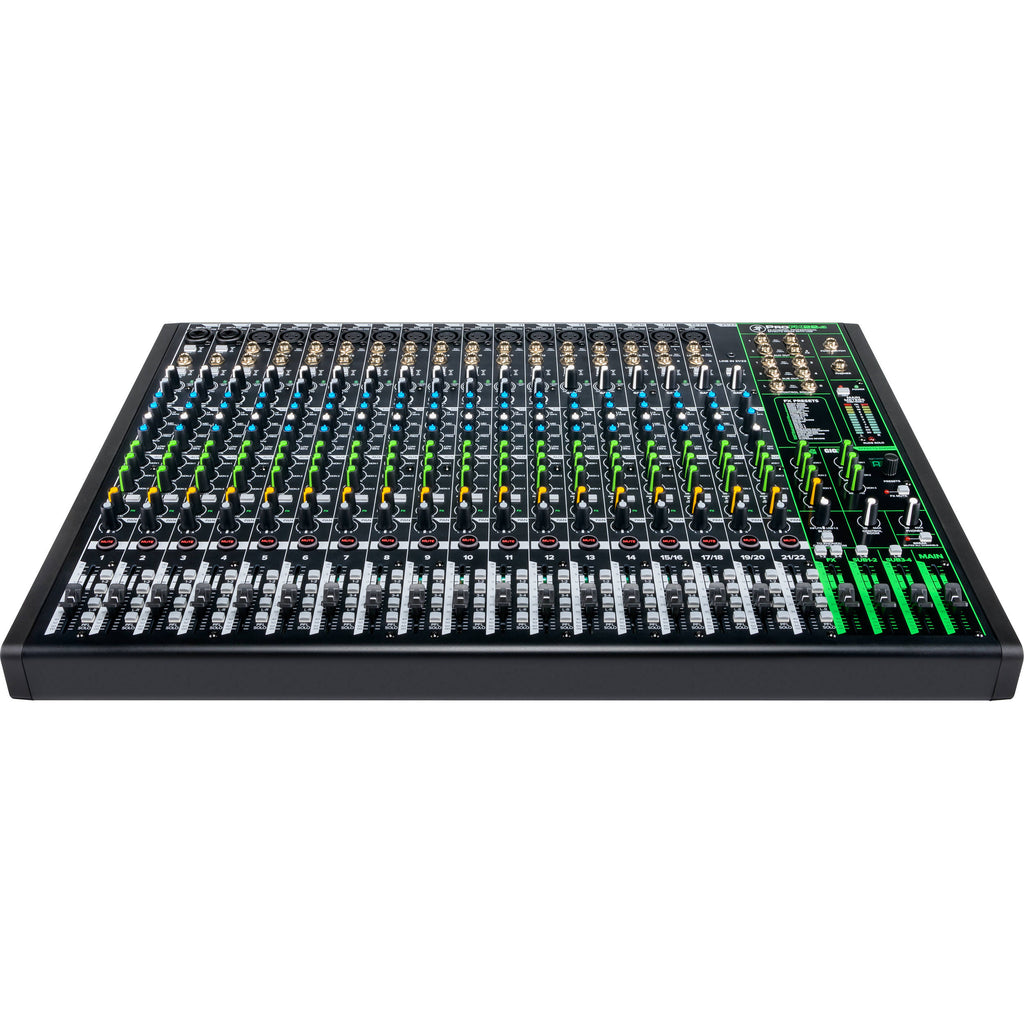

Mackie ProFX22v3 – 22-Channel Analog Mixer with Onyx Preamps & 24-Bit USB Interface

The Mackie ProFX22v3 is a professional 22-channel analog mixer built for live sound, houses of worship, rehearsal spaces, content creators, and small studios that need reliable performance, clean preamps, and powerful built-in processing. With 17 Onyx mic preamps, single-knob compressors, 24 GigFX effects, flexible routing, and a high-resolution 24-bit/192 kHz USB interface, it delivers studio-quality sound and modern workflow enhancements in a rugged, tour-ready chassis.

Key Features

• 17 Onyx mic preamps: Up to 60 dB of gain and ultralow noise performance for pristine vocals and instruments.
• GigFX engine with 24 effects: Add reverbs, delays, choruses, and more—ideal for live vocals, guitars, and spoken word.
• Single-knob compression: Channels 1–12 include easy dynamics control for smoothing vocals, drums, and instruments.
• Flexible routing: Each channel includes Main L/R, Sub 1–2, Sub 3–4, and PFL assignments plus inserts on channels 1–14.
• 2×4 USB interface: Record in 24-bit/192 kHz quality and create two custom computer mixes for return to the mixer.
• Latency-free monitoring: Easily blend between USB playback and direct monitoring from the mixer.
• Rugged Mackie build: Solid steel chassis with ABS side panels for long-term reliability.

Customer Benefits

The ProFX22v3 offers a complete front-of-house solution with professional preamps, onboard effects, and a powerful USB interface—eliminating the need for external processors or additional equipment. Its intuitive layout makes it easy for engineers of all levels to build clean, balanced mixes for live shows, streaming, or studio recording.

Quick Specs

• Channels: 22
• Mic Preamps: 17 Onyx preamps
• Compression: Single-knob compressors on channels 1–12
• EQ: 3-band EQ on all channels
• Inputs: XLR, ¼", and 3.5 mm stereo
• USB: 24-bit/192 kHz, 2×4 operation
• Effects: 24 GigFX effects
• Outputs: Main XLR/¼", Sub 1–2, Sub 3–4, Control Room, Headphones
• Construction: Steel chassis, ABS side guards

What’s in the Box

• Mackie ProFX22v3 mixer
• USB cable
• Software bundle (Pro Tools | First, Waveform OEM + plug-ins)
• Documentation

Use Cases / Ideal For

Live performances, small venues, churches, rehearsal rooms, streaming setups, podcast networks, schools, corporate events, and hybrid recording/live rigs.

Compatibility

Works with all dynamic and condenser microphones, instruments, playback devices, and major DAWs. Phantom power supports all studio condensers.

Pros & Cons

✅ Pros:

• Clean, powerful Onyx preamps
• Built-in compression and effects simplify live mixing
• 24-bit USB interface ideal for hybrid live/recording workflows
• Extensive routing and subgroup options

⚠️ Cons:

• No multitrack USB—2×4 interface only
• Larger footprint compared to compact mixers

The Mackie ProFX22v3 delivers the power, flexibility, and sound quality needed for professional live mixing and recording—available now at Soundium.
