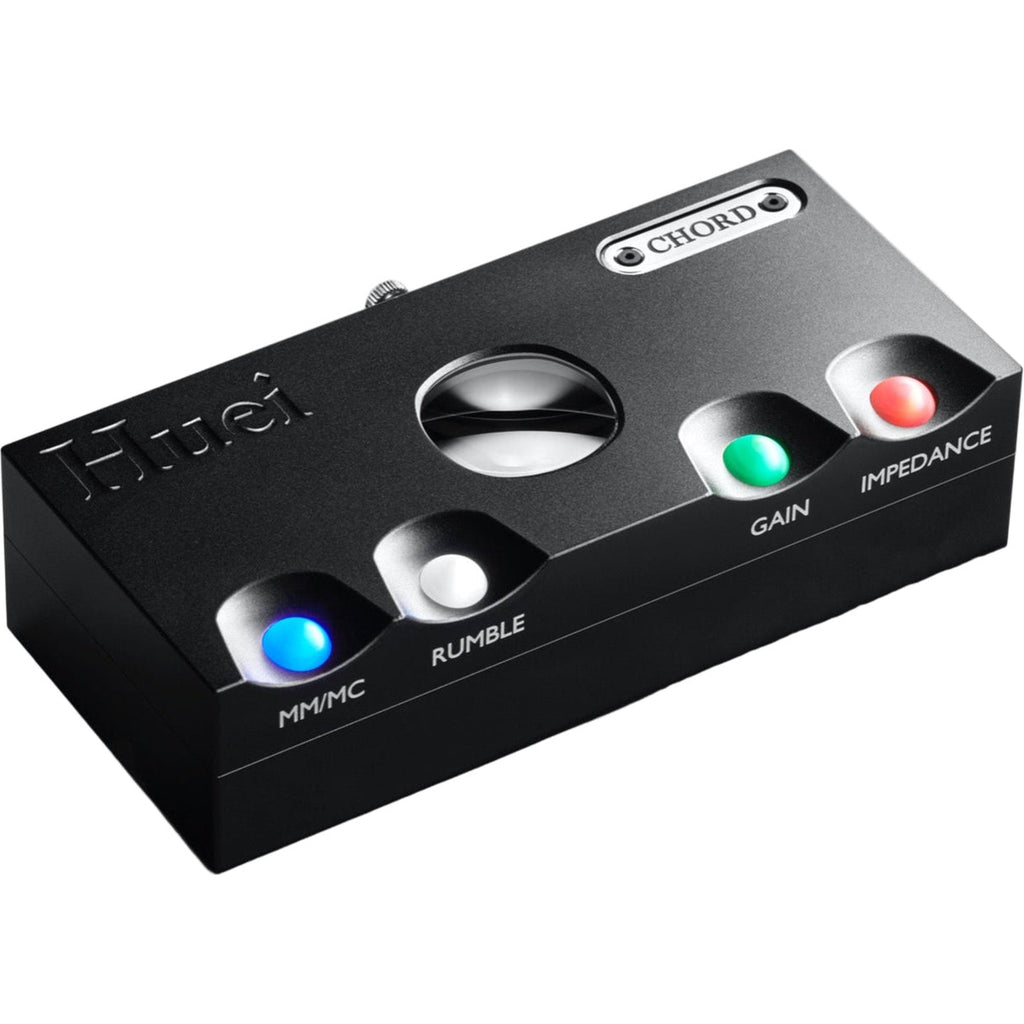

Chord Huei – Compact MM/MC Phono Stage with Advanced Controls

The Chord Huei brings the legendary performance and design of Chord into vinyl playback. This compact phono stage supports both Moving Magnet and Moving Coil cartridges, featuring microprocessor-controlled gain and impedance settings, a selectable rumble filter, and precision RIAA equalization—all housed in a beautifully machined aluminum chassis with signature polychromatic control spheres.

Key Features

• Dual MM/MC support: Automatically switches between Moving Magnet and Coil with eight gain options for each
• Variable impedance matching: Twelve MC impedance settings (100 Ω to 3.7 kΩ) and fixed 47 kΩ for MM
• Rumble filter: Subsonic Rausch slope filter at –24 dB/octave below 50 Hz to reduce low-frequency noise

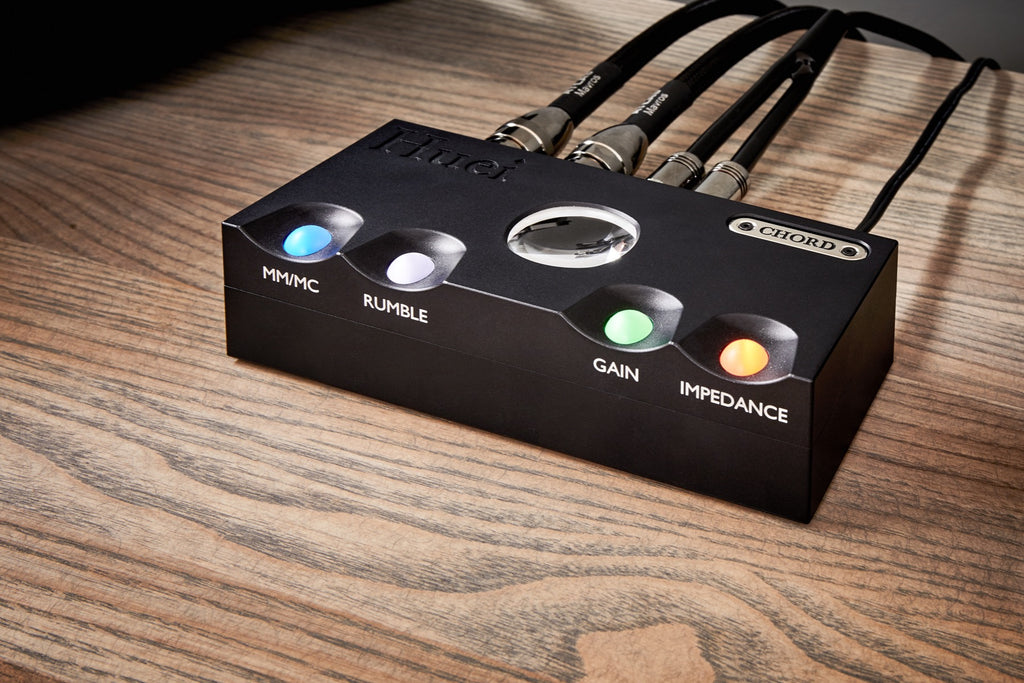

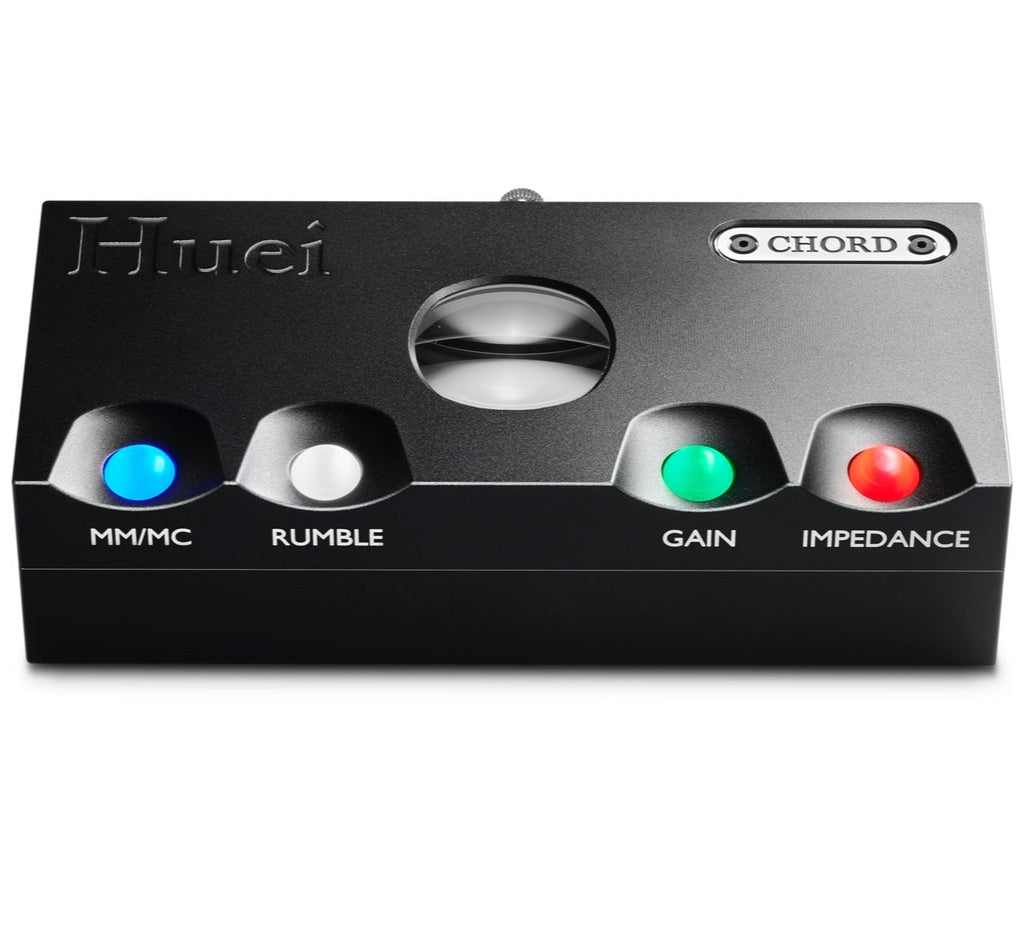

• Colored control orbs: Front-panel LEDs provide intuitive status feedback for settings

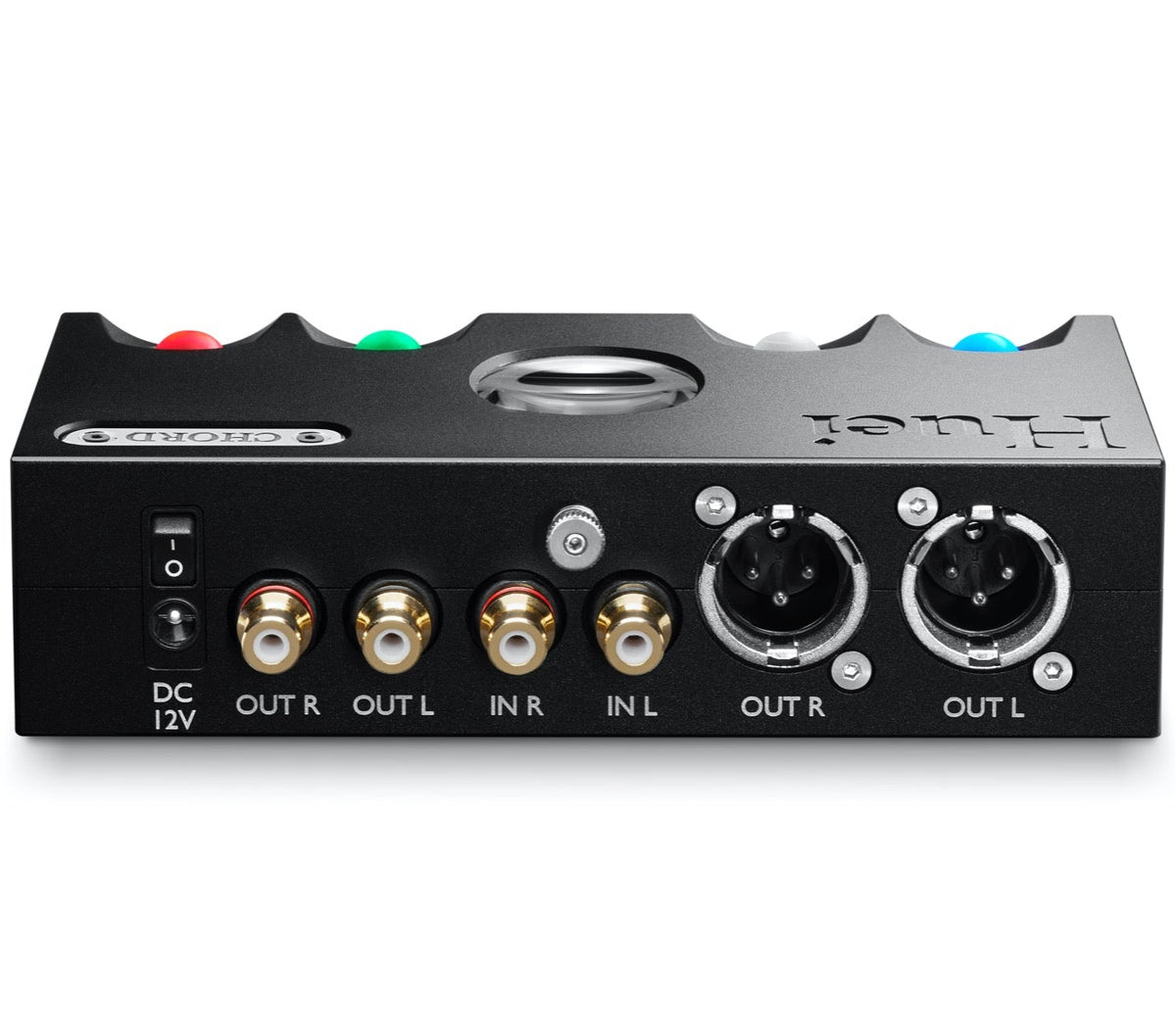

• Balanced/unbalanced outputs: RCA and XLR outputs deliver up to 20 V RMS for versatile integration
• Compact precision build: Just 41 × 160 × 72 mm and 657 g—designed to stack neatly with Chord components

Customer Benefits

The Huei makes vinyl playback highly adaptable and sonically clean. With its extensive cartridge compatibility, low-noise operation, and sophisticated filtering, it offers a transparent and musical listening experience—ideal for modern analog systems and desktop setups.

Quick Specs

• Gain range: MM 21–42 dB, MC 49–70 dB
• Impedance (MC): 100 Ω–3.7 kΩ in 12 steps
• Input noise: ~1.1 nV/√Hz
• Max output: 20 V RMS
• RIAA accuracy: ±0.1 dB (12 Hz–25 kHz)
• Dimensions: 41 × 160 × 72 mm
• Weight: 657 g

What’s in the Box

• Chord Huei phono stage
• 12 V DC power supply
• User guide and cartridge setting reference card

Use Cases / Ideal For

Perfect for vinyl enthusiasts with MM or MC cartridges seeking versatile, low-noise amplification. Ideal as a desktop component or part of a Chord modular stack that includes Qutest, Anni, or Hugo II.

Compatibility

Works with any turntable via RCA input and integrates effortlessly with preamps or amplifiers through RCA or XLR. External 12 V supply included.

Pros & Cons

✅ Pros:

• Extensive MM/MC support with automatic switching
• Low-noise performance and precise RIAA equalization
• Intuitive LED-based settings and stylish compact design
• High output flexibility with balanced and single-ended options

⚠️ Cons:

• Colored-orb interface requires manual lookup for exact settings
• No remote control or screen for adjustment feedback

The Chord Huei offers flagship-level phono performance in a sleek, minimalist package. With deep customization for MM/MC playback, ultra-clean audio, and elegant design, it’s an exceptional addition to any vinyl or desktop audio setup. Hear the precision at Soundium.
