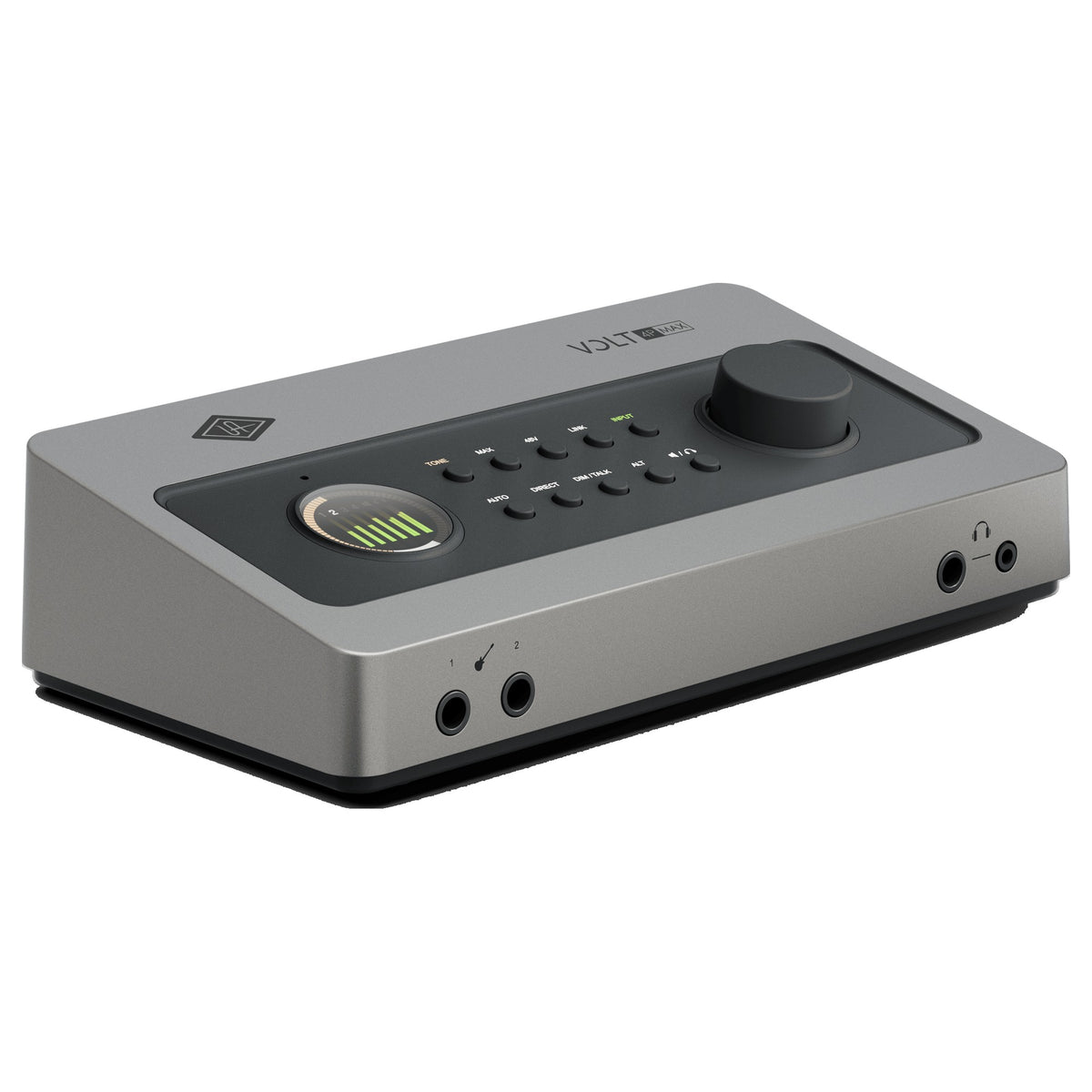

Universal Audio Volt 4P Max – Four Preamps for the Whole Band

Volt 4P Max is the flagship Volt: four Tone Shaping Preamps, each with Max Processing compression, plus speaker switching, talkback, two headphone outputs, ADAT, MIDI and a USB hub. It records a compact drum kit, a band take or a four-host podcast in one desktop unit. At Soundium it takes over from the Volt 476P.

Key Features

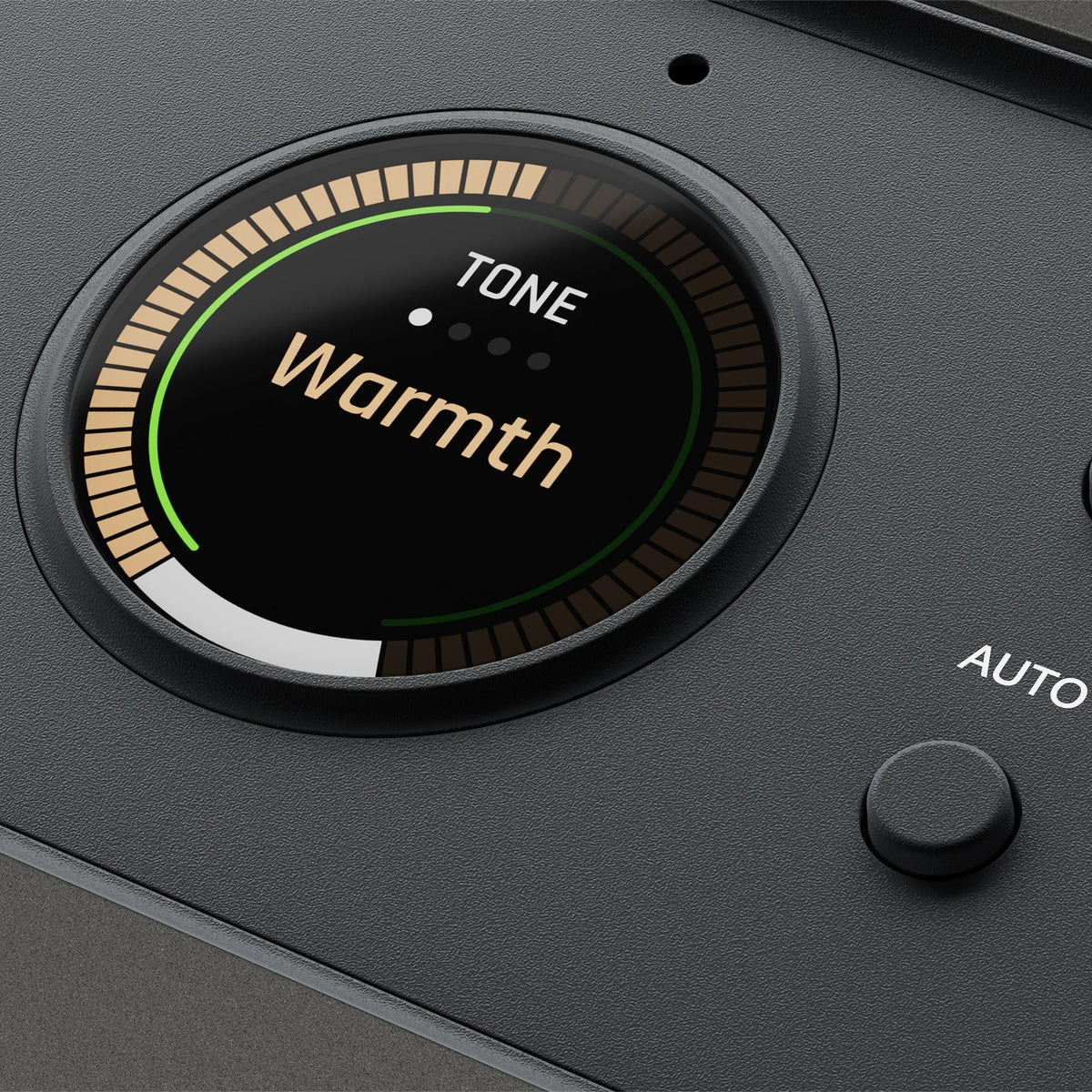

• Four Tone Shaping Preamps: Warmth, Focus or Shine on every mic input, set per channel
• Max Processing: Six onboard compressor presets based on the 1176, LA-2A and VCA designs, tuned for vocals, guitar and bass
• Up to 12 Inputs: Four mics plus 8 more channels via ADAT or S/PDIF optical
• Main and Alt Speaker Switching: Two monitor pairs, plus talkback mic for the live room
• Two Headphone Outputs: Shared cue mix for engineer and performer
• 32-bit / 192 kHz Conversion: Up to 119 dB dynamic range on the mic inputs, so quiet details and loud peaks both land intact

Customer Benefits

Every one of the four inputs is the same preamp, so channel 4 sounds as good as channel 1, and each can carry its own tone and compression. Kick, snare and a stereo overhead pair, or four podcast voices, all get a polished sound at the source. The included supply covers four phantom-powered condensers.

Quick Specs

• Simultaneous I/O: 12-in / 6-out
• Mic preamps: 4, 60 dB gain, Tone Shaping + Max compression

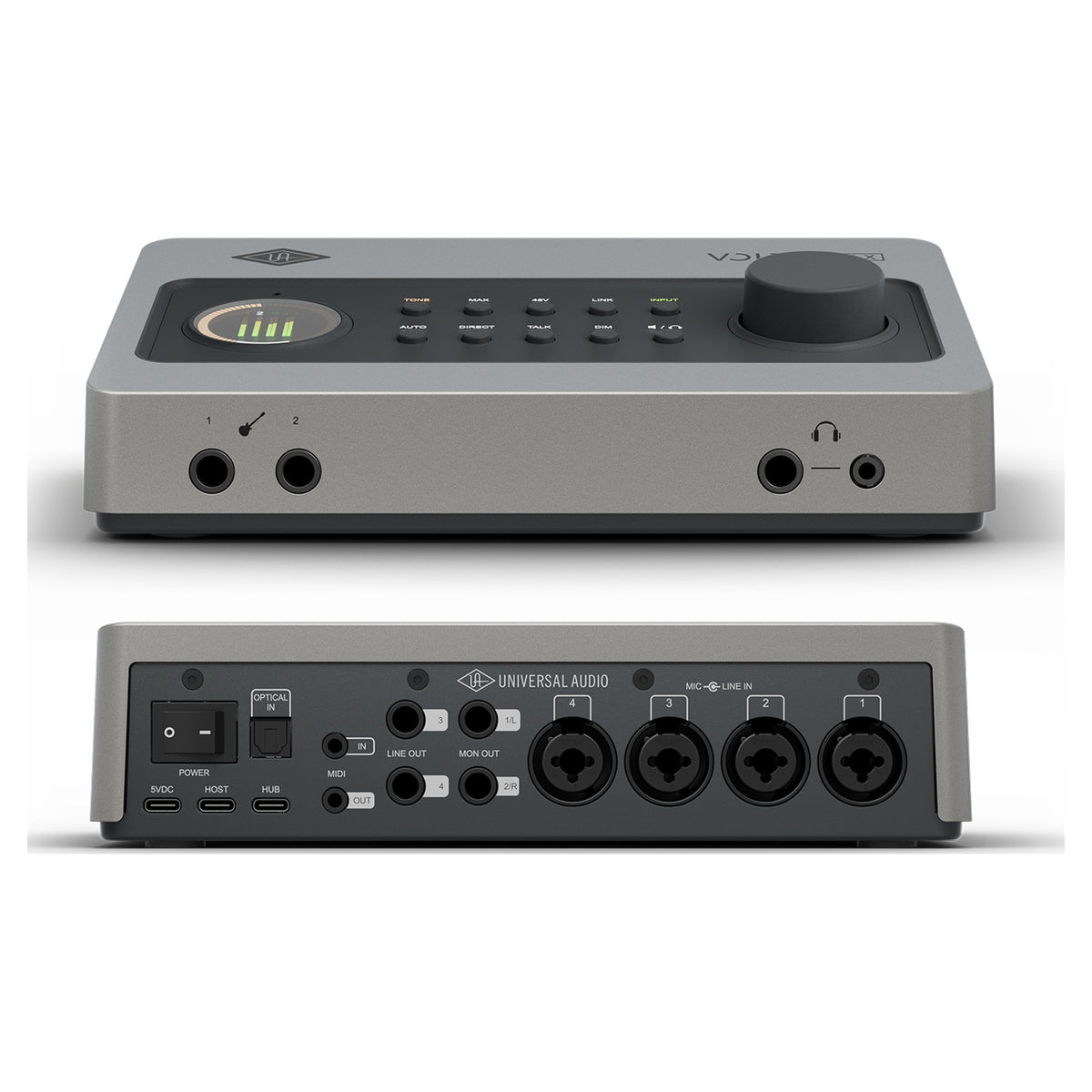

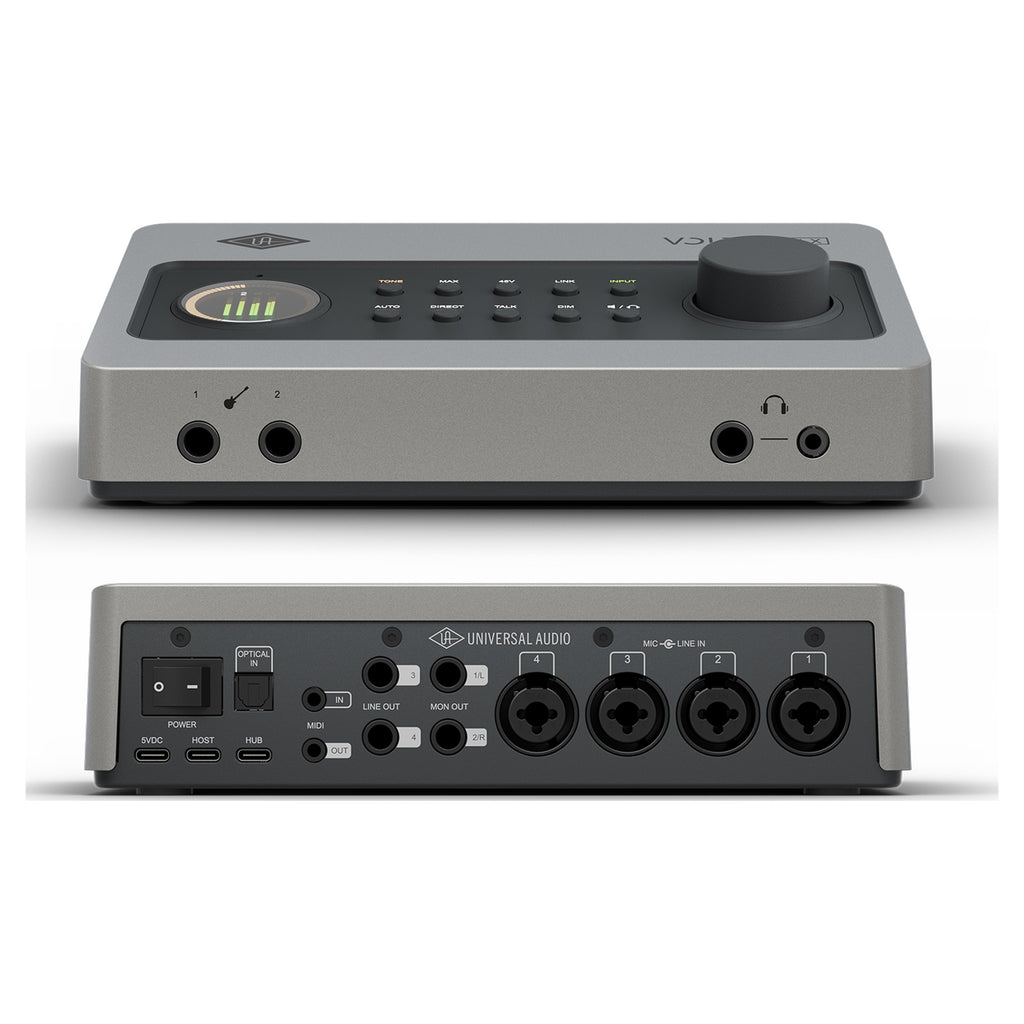

• Inputs: 4x XLR/TRS combo (mic/line), 2x 6.3 mm Hi-Z inst (front), ADAT/S/PDIF optical, MIDI in, talkback mic
• Outputs: Main + Alt monitor pairs (6.3 mm TRS), 2x headphone (6.3 mm + 3.5 mm), MIDI out
• Conversion: 32-bit / 44.1 to 192 kHz
• Dynamic range: 119 dB (mic in), 126 dB (monitor out)
• Connection: USB-C (USB 2.0), USB-C hub port (5 V / 0.5 A), USB-C power input
• Power: Included 3 A supply or bus power, 6.0 W typical; rear power switch

In the Box

• Universal Audio Volt 4P Max
• USB-C to USB-C cable
• USB power supply (5 V / 3 A)
• UAD Volt Studio Bundle: LUNA, Topline Vocal Tune, UA 610 Tube Preamp & EQ Collection, Teletronix LA-2A, UA 1176, Pure Plate Reverb, PolyMAX and Anthem synths, UAD Lion '68 and Showtime '64 amps, plus Melodyne Essential, Ampeg SVT-VR Classic Bass Bundle, UJAM Virtual Drummer DEEP and Virtual Bassist DANDY, Splice INSTRUMENT, UVI Prisma Producer Lab and 3 months of FL Studio Producer Edition

Ideal For

• Bands and drummers recording live takes

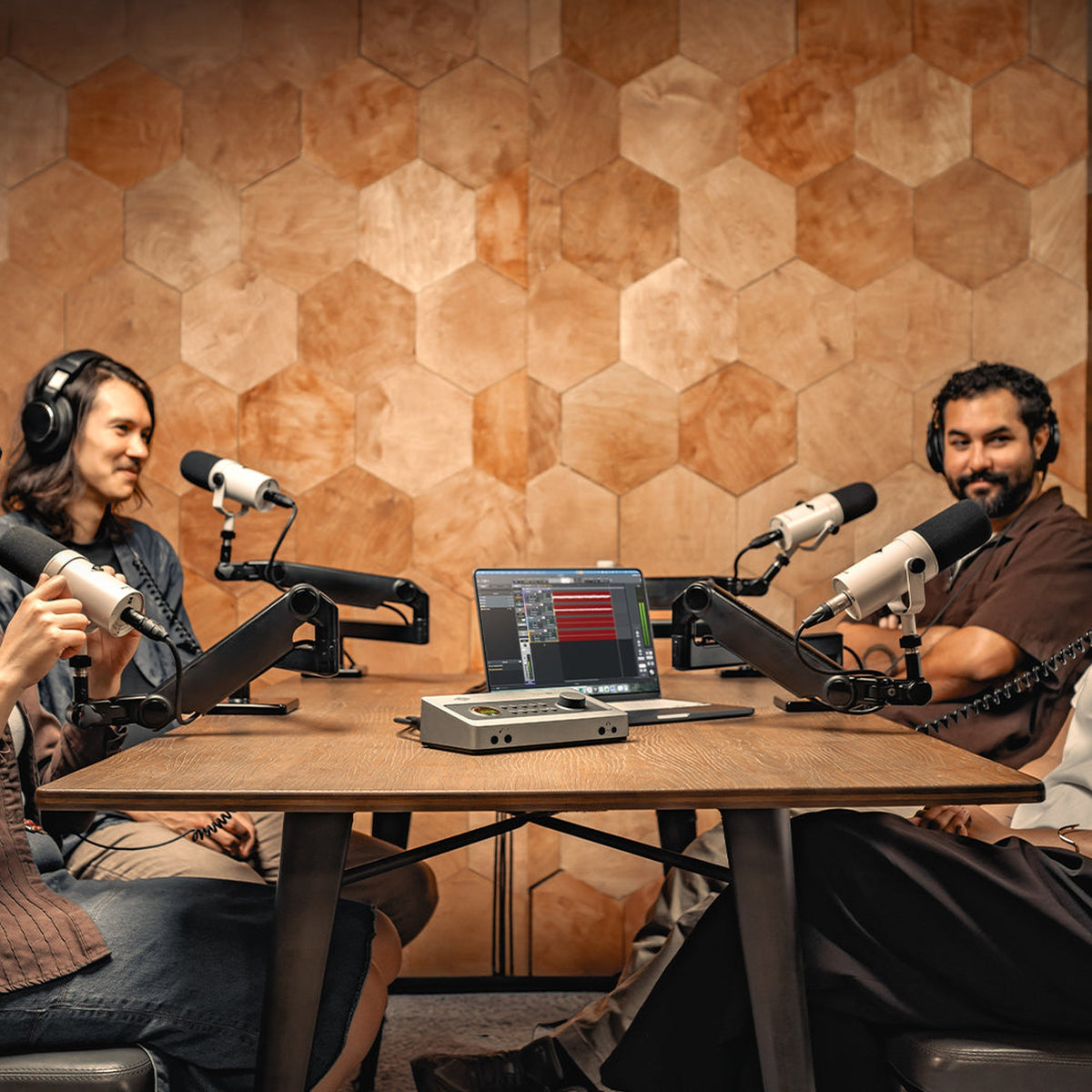

• Multi-guest podcasts and livestreams
• Project studios replacing a Volt 476P

Compatibility

Class-compliant on macOS 12 or newer, iPadOS / iOS 16 or newer (USB-C, or Lightning via Camera Adapter) and Windows 10 64-bit or newer with the UA ASIO driver. Works with Ableton Live, Logic Pro, Pro Tools, FL Studio and every other major DAW.

Pros & Cons

✅ Pros:

• Four identical preamps, each with tone and compression
• Speaker switching, talkback and two headphone outputs
• ADAT expansion to 12 inputs

⚠️ Cons:

• No onboard DSP for running UAD plug-ins in realtime (that is Apollo territory)
• Bus power depends on the host port; the supply is the reliable option with four condensers

Volt 4P Max is the most complete Volt yet and the one to choose when more than two people are in the room. Find it at Soundium together with the rest of the Volt Max and Volt Gen 2 family.
